Model:JHY-SD-A1
Intended use:
Removal of polyps or other excess tissues in the digestive tract used with diathermic energy.
Features:
*Made by high-strength medical braided wire, offering a precise&quick cutting properties, as well as an outstanding electric coagulation.

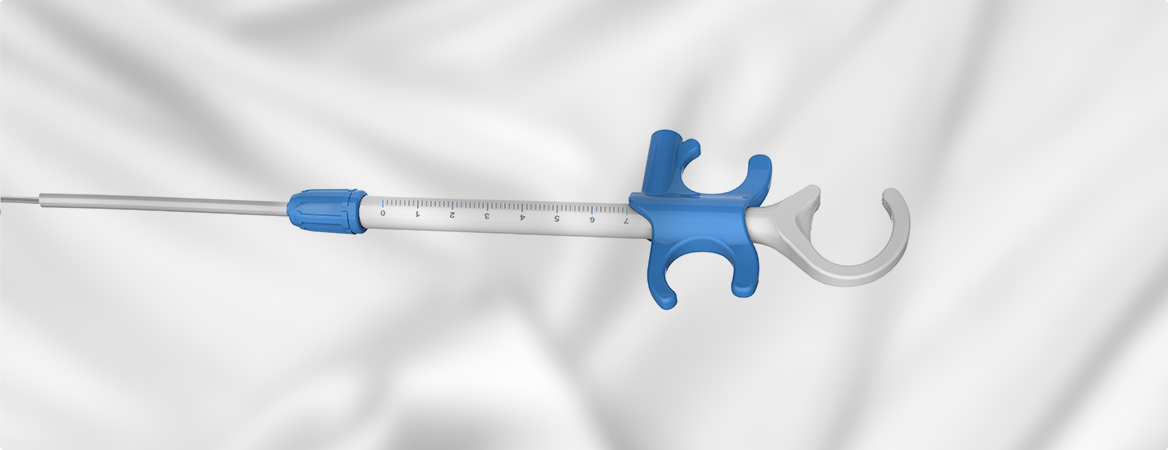

*Loop rotates synchronously by rotating the 3-ring handle, highly increase efficiency.
*Standard power connection, compatible with all main high-frequency devices on the market.
*Ergonomic design of 3-ring handle, easier to hold and use.

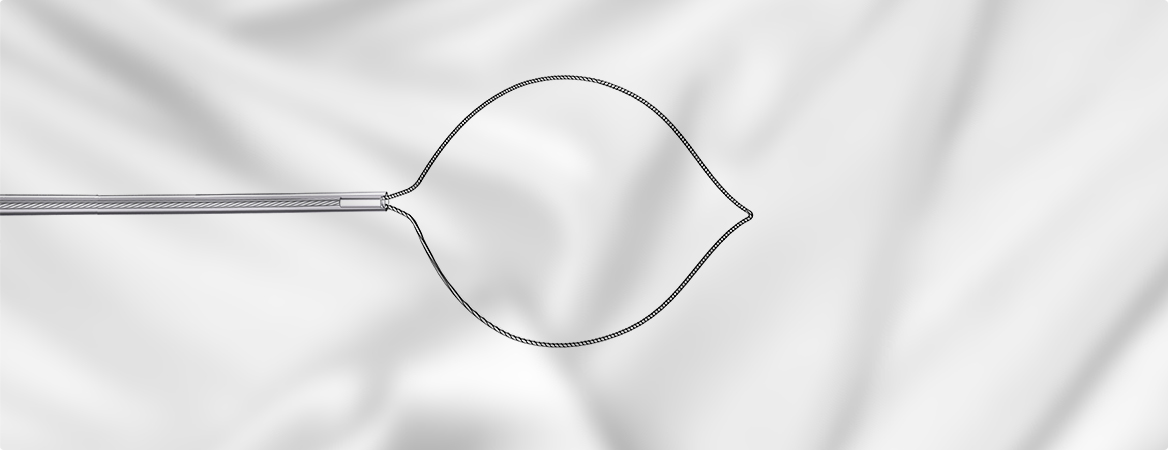

Oval Snare
Model | O.D(mm) | Length(mm) | Loop Width(mm) | Characteristics |
JHY-SD-18-160-20-A1 | 1.8 | 1600 | 20 | Standard Rotation |
JHY-SD-23-160-10-A1 | 2.3 | 1600 | 10 | |
JHY-SD-23-230-10-A1 | 2.3 | 2300 | 10 | |
JHY-SD-23-160-15-A1 | 2.3 | 1600 | 15 | |
JHY-SD-23-230-15-A1 | 2.3 | 2300 | 15 | |
JHY-SD-23-160-20-A1 | 2.3 | 1600 | 20 | |
JHY-SD-23-230-20-A1 | 2.3 | 2300 | 20 | |
JHY-SD-23-160-25-A1 | 2.3 | 1600 | 25 | |
JHY-SD-23-230-25-A1 | 2.3 | 2300 | 25 | |
JHY-SD-23-160-30-A1 | 2.3 | 1600 | 30 | |
JHY-SD-23-230-30-A1 | 2.3 | 2300 | 30 | |
JHY-SD-23-160-35-A1 | 2.3 | 1600 | 35 | |
JHY-SD-23-230-35-A1 | 2.3 | 2300 | 35 | |
JHY-SD-23-160-50-A1 | 2.3 | 1600 | 50 | |
JHY-SD-23-230-50-A1 | 2.3 | 2300 | 50 | |
JHY-SD-23-230-20-A1R | 2.3 | 2300 | 20 | Graduated Rotation |
JHY-SD-23-230-30-A1R | 2.3 | 2300 | 30 |
