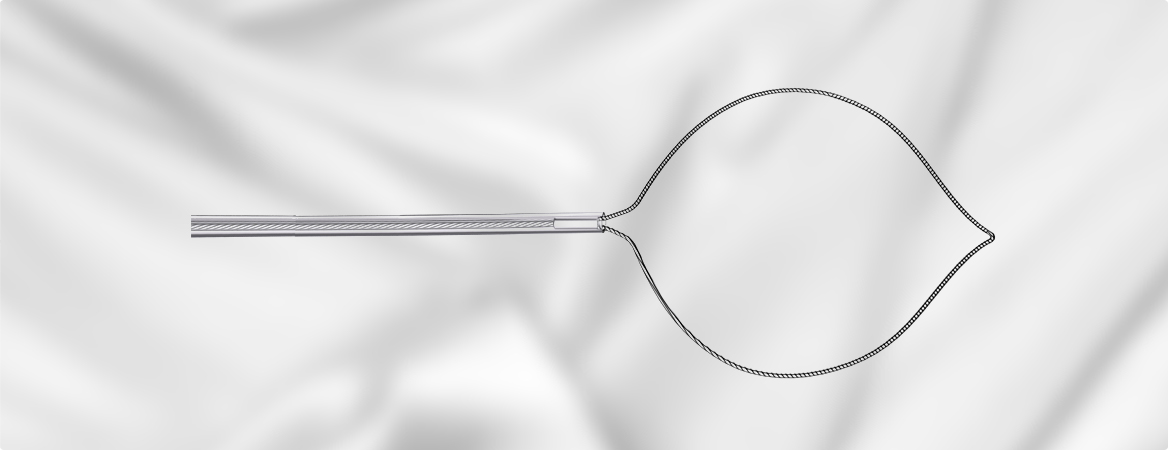

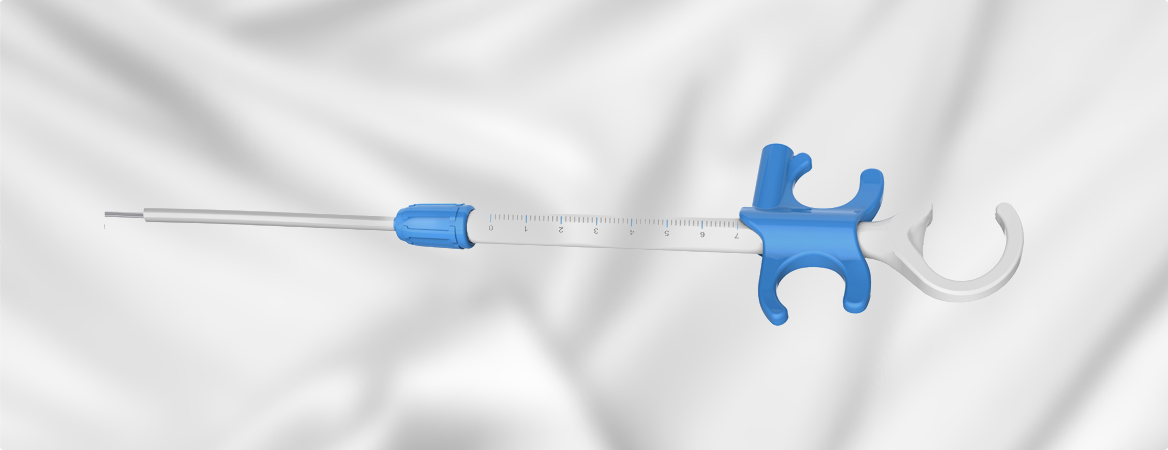

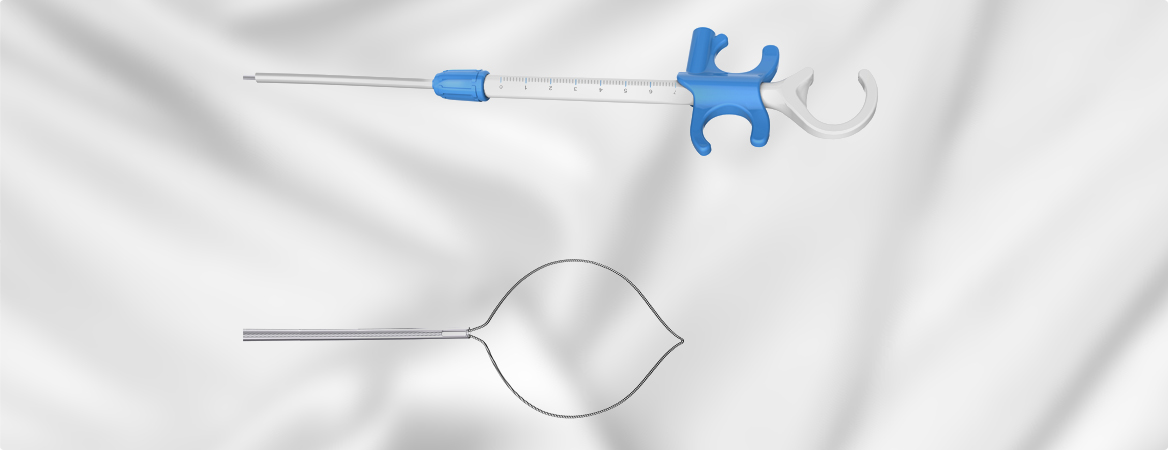

Disposable Polypectomy Snare---oval
Model：JHY-SD
Intended use:
Removal of polyps or other excess tissues in the digestive tract used with diathermic energy.
Features:
*Made by high-strength medical braided wire, offering a precise&quick cutting properties, as well as an outstanding electric coagulation.
*Loop rotates synchronously by rotating the 3-ring handle, highly increase efficiency.
*Standard power connection, compatible with all main high-frequency devices on the market.
*Ergonomic design of 3-ring handle, easier to hold and use.
| Model | O.D.(mm) | Length (mm) | Loop Width(mm) | Loop Type | Endoscopic Channel(mm) |
|---|---|---|---|---|---|
| JHY-SD-18-120-15-A1 | 1.8 | 1200 | 15 | oval | ≥2.0 |
| JHY-SD-18-120-20-A1 | 1.8 | 1200 | 20 | oval | ≥2.0 |
| JHY-SD-23-120-15-A1 | 2.3 | 1200 | 15 | oval | ≥2.8 |
| JHY-SD-23-160-20-A1 | 2.3 | 1600 | 20 | oval | ≥2.8 |
| JHY-SD-23-160-25-A1 | 2.3 | 1600 | 25 | oval | ≥2.8 |
| JHY-SD-23-160-30-A1 | 2.3 | 1600 | 30 | oval | ≥2.8 |
| JHY-SD-23-160-35-A1 | 2.3 | 1600 | 35 | oval | ≥2.8 |
| JHY-SD-23-230-20-A1 | 2.3 | 2300 | 20 | oval | ≥2.8 |
| JHY-SD-23-230-25-A1 | 2.3 | 2300 | 25 | oval | ≥2.8 |
| JHY-SD-23-230-30-A1 | 2.3 | 2300 | 30 | oval | ≥2.8 |
| JHY-SD-23-230-35-A1 | 2.3 | 2300 | 35 | oval | ≥2.8 |
Disposable Polypectomy Snare---hexagon
Model：JHY-SD
Intended use:
Removal of polyps or other excess tissues in the digestive tract used with diathermic energy.
Features:
*Made by high-strength medical braided wire, offering a precise&quick cutting properties, as well as an outstanding electric coagulation.
*Loop rotates synchronously by rotating the 3-ring handle, highly increase efficiency.
*Standard power connection, compatible with all main high-frequency devices on the market.
*Ergonomic design of 3-ring handle, easier to hold and use.
| Model | O.D.(mm) | Length (mm) | Loop Width(mm) | Loop Type | Endoscopic Channel(mm) |
|---|---|---|---|---|---|
| JHY-SD-18-120-15-A1 | 1.8 | 1200 | 15 | oval | ≥2.0 |
| JHY-SD-18-120-20-A1 | 1.8 | 1200 | 20 | oval | ≥2.0 |
| JHY-SD-23-120-15-A1 | 2.3 | 1200 | 15 | oval | ≥2.8 |
| JHY-SD-23-160-20-A1 | 2.3 | 1600 | 20 | oval | ≥2.8 |
| JHY-SD-23-160-25-A1 | 2.3 | 1600 | 25 | oval | ≥2.8 |
| JHY-SD-23-160-30-A1 | 2.3 | 1600 | 30 | oval | ≥2.8 |
| JHY-SD-23-160-35-A1 | 2.3 | 1600 | 35 | oval | ≥2.8 |
| JHY-SD-23-230-20-A1 | 2.3 | 2300 | 20 | oval | ≥2.8 |
| JHY-SD-23-230-25-A1 | 2.3 | 2300 | 25 | oval | ≥2.8 |
| JHY-SD-23-230-30-A1 | 2.3 | 2300 | 30 | oval | ≥2.8 |
| JHY-SD-23-230-35-A1 | 2.3 | 2300 | 35 | oval | ≥2.8 |
Disposable Polypectomy Snare---crescent
Model：JHY-SD
Intended use:
Removal of polyps or other excess tissues in the digestive tract used with diathermic energy.
Features:
*Made by high-strength medical braided wire, offering a precise&quick cutting properties, as well as an outstanding electric coagulation.
*Loop rotates synchronously by rotating the 3-ring handle, highly increase efficiency.
*Standard power connection, compatible with all main high-frequency devices on the market.
*Ergonomic design of 3-ring handle, easier to hold and use.
| Model | O.D.(mm) | Length (mm) | Loop Width(mm) | Loop Type | Endoscopic Channel(mm) |
|---|---|---|---|---|---|
| JHY-SD-18-120-15-A1 | 1.8 | 1200 | 15 | oval | ≥2.0 |
| JHY-SD-18-120-20-A1 | 1.8 | 1200 | 20 | oval | ≥2.0 |
| JHY-SD-23-120-15-A1 | 2.3 | 1200 | 15 | oval | ≥2.8 |
| JHY-SD-23-160-20-A1 | 2.3 | 1600 | 20 | oval | ≥2.8 |
| JHY-SD-23-160-25-A1 | 2.3 | 1600 | 25 | oval | ≥2.8 |
| JHY-SD-23-160-30-A1 | 2.3 | 1600 | 30 | oval | ≥2.8 |
| JHY-SD-23-160-35-A1 | 2.3 | 1600 | 35 | oval | ≥2.8 |
| JHY-SD-23-230-20-A1 | 2.3 | 2300 | 20 | oval | ≥2.8 |
| JHY-SD-23-230-25-A1 | 2.3 | 2300 | 25 | oval | ≥2.8 |
| JHY-SD-23-230-30-A1 | 2.3 | 2300 | 30 | oval | ≥2.8 |
| JHY-SD-23-230-35-A1 | 2.3 | 2300 | 35 | oval | ≥2.8 |
