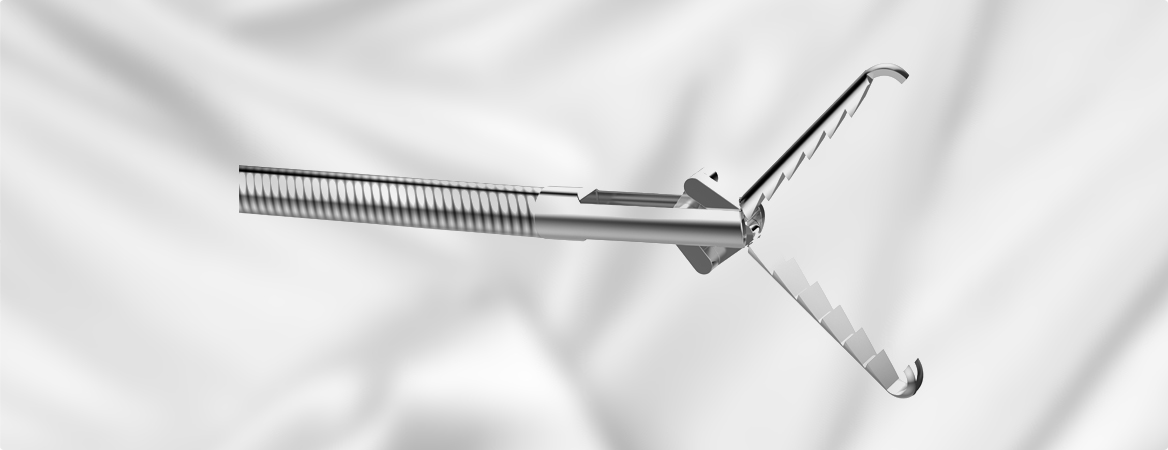

Disposable Grasping Forceps with Net£¨Íø¶µÐÍ£©
Model£ºJHY-FG
Intended use
Combined with endoscope to remove foreign body in digestive tract.
Features
*Disposable, no need to re-sterilize, avoiding cross contamination, convenient to use and reducing the clinical workload.
*The jaw is made up of medical-use stainless steel which has good biocompatibility.
*The outer tube is made up of PTFE which has good lubricity, easy to pass through the endoscope channel.
| Model | O.D.(mm) | Working Length(mm) | Head size(mm) | Endoscopic channel(mm£© |
|---|---|---|---|---|
| JHY-FG-18-120-Da | 1.8 | 1200 | 20*50 | 2.0 |
| JHY-FG-18-120-Db | 1.8 | 1200 | 20*55 | 2.0 |
| JHY-FG-18-120-Dc | 1.8 | 1200 | 30*60 | 2.0 |
| JHY-FG-25-160-Da | 2.5 | 1600 | 20*50 | 2.8 |
| JHY-FG-25-160-Db | 2.5 | 1600 | 20*55 | 2.8 |
| JHY-FG-25-160-Dc | 2.5 | 1600 | 30*60 | 2.8 |
| JHY-FG-25-160-Dd | 2.5 | 1600 | 40*75 | 2.8 |
| JHY-FG-25-230-Da | 2.5 | 2300 | 20*50 | 2.8 |
| JHY-FG-25-230-Db | 2.5 | 2300 | 20*55 | 2.8 |
| JHY-FG-25-230-Dc | 2.5 | 2300 | 30*60 | 2.8 |
| JHY-FG-25-230-Dd | 2.5 | 2300 | 40*75 | 2.8 |
