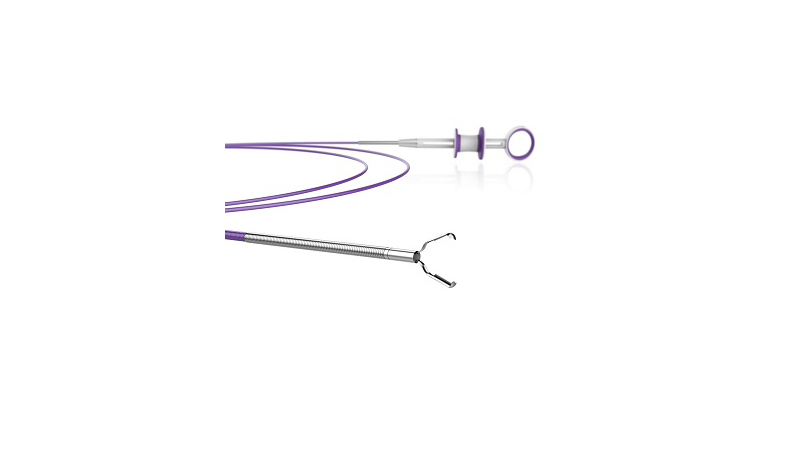

Endoscopic Hemoclip
Abstract:
Jiuhong Medical Instrument Co.,Ltd is one of the best endoscopic hemoclip, hemostasis clip, disposable hemoclip, endoscopy quickclip manufacturers and also a professional such supplier in China, please feel free to contact us.
Intended use
Compatible with endoscope, the device is indicated for clip placement within digestive tract for the purpose of mechanical pressure treatment of bleeding of small arteries and pulsation.
Features

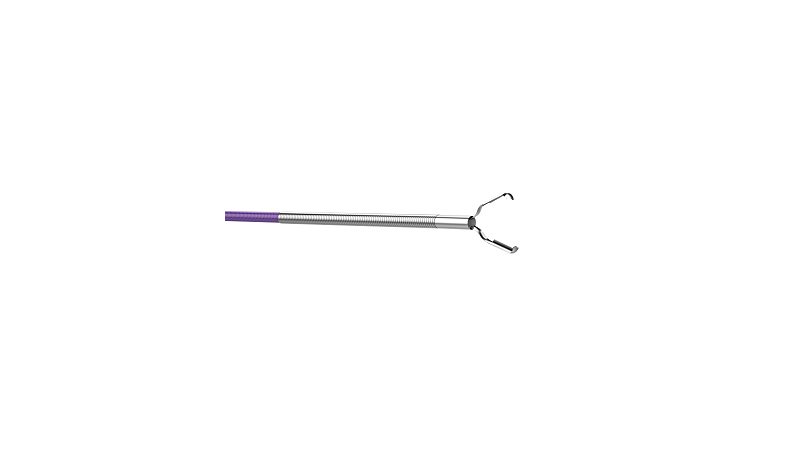

Rotatable clips design, offering a precise placement.
Repeated opening and closing clips.

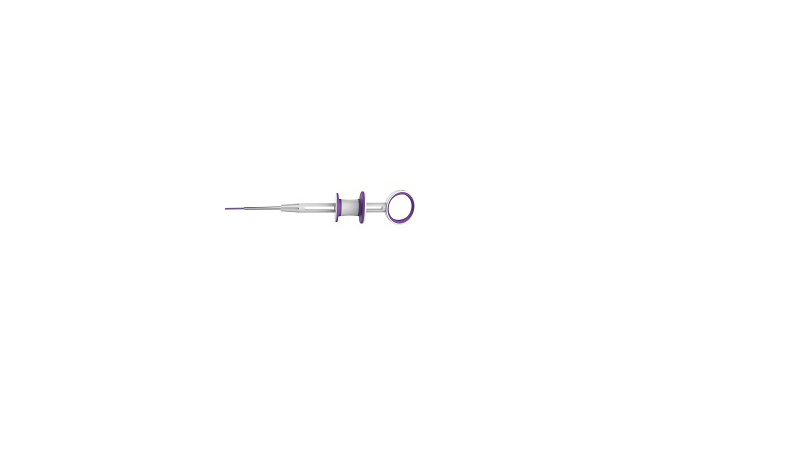

Innovational design of handle lock system and atraumatic tip, avoid damage to scope after releasing clips.
Sensitive release system, easy to release the clips.
Specifications
Model | O.D(mm) | Woking Length(mm) | Clip opening (mm) | Endoscope Channel (mm) |
---|---|---|---|---|
JHY-CD11-25-160 | 2.5 | 1600 | 11 | ¡Ý2.8 |
JHY-CD11-25-180 | 2.5 | 1800 | 11 | ¡Ý2.8 |
JHY-CD11-25-230 | 2.5 | 2300 | 11 | ¡Ý2.8 |
JHY-CD13-25-160 | 2.5 | 1600 | 13 | ¡Ý2.8 |
JHY-CD13-25-180 | 2.5 | 1800 | 13 | ¡Ý2.8 |
JHY-CD13-25-230 | 2.5 | 2300 | 13 | ¡Ý2.8 |
